Stapled Peptides

Hydrocarbon stapled peptides are peptides locked into their bioactive alpha-helical conformation through site-specific introduction of a chemical brace, an all-hydrocarbon staple. The idea of peptide stapling was introduced to overcome the limitations of two broad classes of therapeutic agents (small molecules and protein biologics) in targeting intracellular protein-protein interactions. Small molecules only work on proteins with a specific feature on their surfaces and most protein biologics do not penetrate into cells. Because stapled peptides are locked into a stabilized α-helical structure (the most common element of protein secondary structures), they can easily penetrate cells. As a rapidly emerging class of next-generation drugs, stapled peptides are expected to combine the synthetic manipulability and cell-penetrating ability of small molecules with the three-dimensionality and versatile target recognition ability of biologics. CPC Scientific has extensively developed stapled peptide structures and is the company of choice to manufacture your stapled peptide requirements. Our technical consultants would be happy to discuss your structural design needs with you at any time.

Chemistry

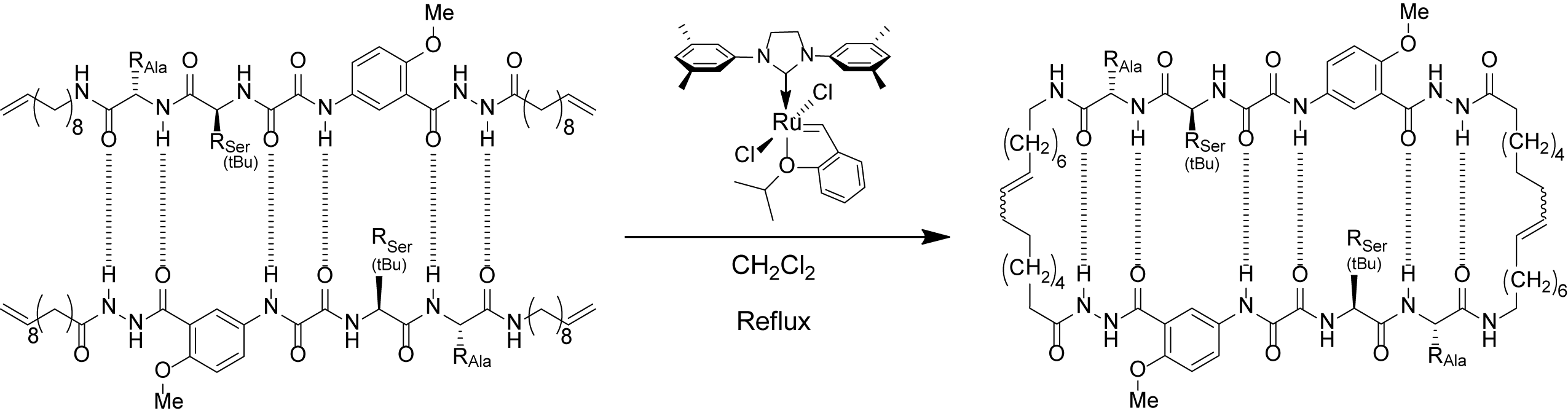

Grubbs catalyst's are routinely used in olefin metathesis to incorporate hydrocarbon staples into peptides.

Stapled peptide chemistry

Two distinct conformational strategies are utilized to induce and stabilize an α-helical structure, namely, α,α-di-substitution (helix nucleation by α-methylation) and macro-cyclic bridge formation (conformational constraint).

Custom Stapled Peptide Bond Types

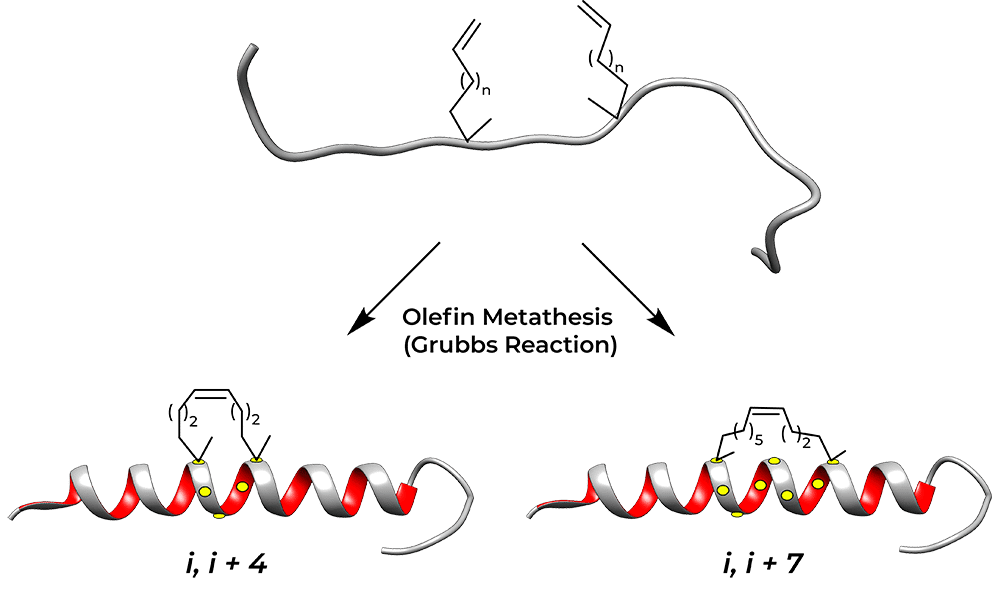

Incorporating a staple into a peptide structure entails the integration of two appropriately-spaced, α-methyl, α-alkenylglycine residues, having defined stereochemical configuration and alkene chain length, followed by ruthenium-mediated olefin metathesis before cleavage from the synthesis resin and deprotection, to yield the stapled peptide. Three different types of all hydrocarbon staples are shown in the figure, demonstrating the creation of a stabilized α-helix in a peptide. Approximately one turn of the helix would be i and i+3 (or i, i+4) and two turns of the helix would be i, i+7; three turns of the helix would be i, i+11. For information about the R/S descriptors shown in the figure, please see the Cahn-Ingold-Prelog priority rules for naming stereoisomers.

Stapled Peptides in Drug Design

The introduction of a hydrocarbon staple confers high levels of α-helical content and results in:

  • Better target affinity (5 to 5,000-fold increase)
  • Increased proteolytic resistance and serum half- life
  • Cell penetration through endocytic vesicle trafficking
  • Targeting of either extracellular or intracellular proteins
  • Disruption of protein-protein interactions
  • Non-immunogenicity
  • Viable pharmacokinetics and in vivo stability

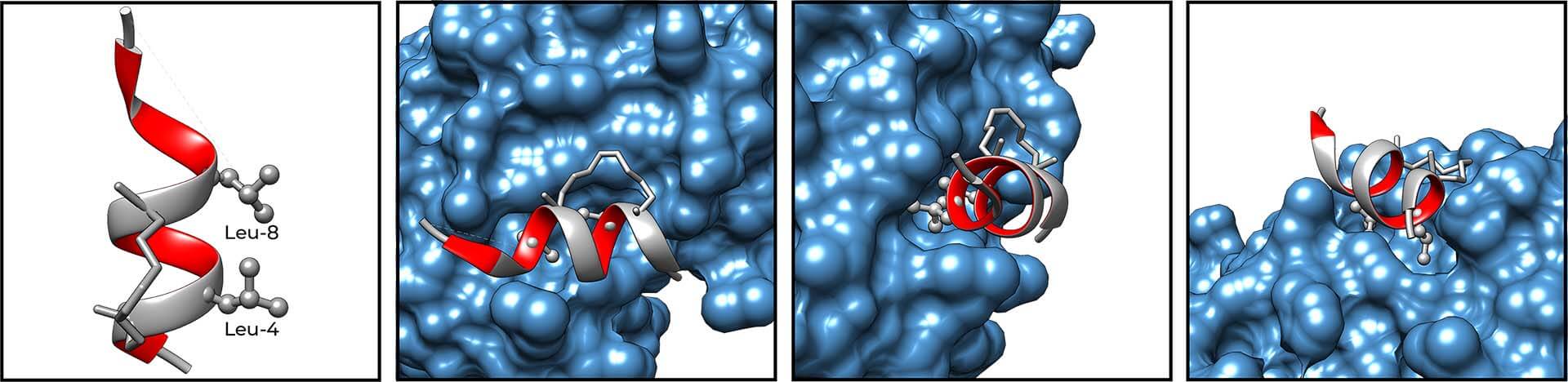

stapled peptide bound to estrogen receptor

Novel stapled peptide (prepared by CPC Scientific) bound to the coactivator peptide site of estrogen receptor alpha. Phillips, Chris, et al. Journal of the American Chemical Society 133.25 (2011): 9696-9699.

Custom Peptide Synthesis Stapled

Phillips, Chris, et al. "Design and structure of stapled peptides binding to estrogen receptors." Journal of the American Chemical Society 133.25 (2011): 9696-9699.

Stapled Peptide Citations

"Synthetic peptides that specifically bind nuclear hormone receptors offer an alternative approach to small molecules for the modulation of receptor signaling and subsequent gene expression. Here we describe the design of a series of novel stapled peptides that bind the coactivator peptide site of estrogen receptors. Using a number of biophysical techniques, including crystal structure analysis of receptor–stapled peptide complexes, we describe in detail the molecular interactions and demonstrate that all-hydrocarbon staples modulate molecular recognition events. The findings have implications for the design of stapled peptides in general."

1. Phillips, Chris, et al. "Design and structure of stapled peptides binding to estrogen receptors." Journal of the American Chemical Society 133.25 (2011): 9696-9699.Learn More »

"The stapled peptides with greaterthan 90% purity were synthesized by.. CPC Scientific, CA"

2. Bhattacharya, Shibani, et al. "Novel structures of self-associating stapled peptides." Biopolymers 97.5 (2012): 253-264. Learn More »

"In this report, we expanded the study to i,i+7 hydrocarbon-stapled peptides to delineate their mechanism of action and antiviral activity. We identified three potent inhibitors, NYAD-36, -66 and -67, which showed strong binding to CA in NMR and isothermal titration calorimetry (ITC) studies and disrupted the formation of mature-like particles. They showed typical α-helical structures and penetrated cells; however, the cell penetration was not as efficient as observed with the i,i+4 peptides. Unlike NYAD-1, the i,i+7 peptides did not have any effect on virus release; however, they impaired Gag precursor processing. HIV-1 particles produced in the presence of these peptides displayed impaired infectivity. Consistent with an effect on virus entry, selection for viral resistance led to the emergence of two mutations in the gp120 subunit of the viral envelope (Env) glycoprotein, V120Q and A327P, located in the conserved region 1 (C1) and the base of the V3 loop, respectively."

3. Zhang, Hongtao, et al. "Dual-acting stapled peptides target both HIV-1 entry and assembly." Retrovirology 10.1 (2013).Learn More »

"NYAD-1 is H - Ile - Thr - Phe - X - Asp - Leu - Leu - X - Tyr - Tyr - Gly - Pro - NH2 (with special cyclization to get double bond, X = (S) - alpha - (2′-pentenyl)alanine) (4). NYAD-1 and CAI (H-Ile-Thr-Phe-Glu-Asp-Leu-Leu-Asp-Tyr-Tyr-Gly-Pro-NH2) were synthesized by CPC Scientific (San Jose, CA) under the supervision of Xiaohe Tong"

4. Sun, Tzu-Lin, et al. "Membrane permeability of hydrocarbon-cross-linked peptides." Biophysical Journal 104.9 (2013): 1923-1932.Learn More »

"The peptides, shown in Figure 1, were designed and synthesized. MPER (RRRNEQELLELDKWASLWNWFDITNWLWYIRRRR), TT peptide (FNNFTVSFWLRVPKVSASHLE), T10HE peptide (FNNFTVSFWLRVPKVSASHLE-PEG2-LWNWF-S5-ITN-S5-LWYIR-PEG2-KK), and T10E peptide (FNNFTVSFWLRVPKVSASHLEPEG2-LWNWFDITNWLWYIR-PEG2-KK) were purchased from CPC Scientific Inc. (Sunnyvale, CA, USA)."

5. Yu, Yang, et al. "10E8-like neutralizing antibodies against HIV-1 induced using a precisely designed conformational peptide as a vaccine prime." Science China Life Sciences 57.1 (2014): 117-127.Learn More »

"Hydrocarbon-stapled peptide corresponding to the BH3 domain of BIM, BIM SAHBA: N-acetylated 145EIWIAQELRS5IGDS5FNAYYA164-CONH2, where S5 represents the non-natural amino acid inserted for olefin metathesis, was synthesized, purified and characterized as previously described by CPC Scientific (Gavathiotis et al., 2008)."

6. Garner, Thomas P., et al. "An autoinhibited dimeric form of BAX regulates the BAX activation pathway." Molecular Cell 63.3 (2016): 485-497.Learn More »

"Hydrocarbon-stapled peptide corresponding to the BH3 domain of BIM, BIM SAHBA2: N-acetylated 145EIWIAQELRS5IGDS5FNAYYA164-CONH2 (SEQ ID NO:2), where S5 represents the non-natural amino acid inserted for olefin metathesis, was synthesized, purified and characterized as previously described by CPC Scientific (11)."

7. Gavathiotis, E., Albert Einstein College of Medicine, 2017. Targeting dimerization of bax to modulate bax activity. U.S. Patent Application 15/311,861.Learn More »

BAX stapled peptide

Hydrocarbon-stapled peptide corresponding to the BH3 domain of BIM, BIM SAHBA: N-acetylated 145EIWIAQELRS5IGDS5FNAYYA164-CONH2, S5 = non-natural amino acid inserted for olefin metathesis, was synthesized, purified and characterized as previously described by CPC Scientific (Gavathiotis et al., 2008).

Stapled Peptides by Click Chemistry

The high efficiency and mild conditions of “click” reaction (Copper-catalyzed Huisgen 1,3-dipolar cycloaddition reaction) combined with the ease of synthesis of the necessary unnatural amino acids, allows for facile synthesis of triazole-stapled peptides. For example, a combination of L- Nle (εN3) and D-Pra (D-propargylalanine) substituted at the i and i+4 positions, can be used for the generation of single triazole-stapled peptides.

Custom Peptides by Click Chemistry

Modifications of stapled peptides

Stapled peptide modifications typically fall into two categories: a fluorescent label or an affinity tag. Two of the most common moieties appended to the N-terminus of stapled peptides are fluorescein, which can be used for studies of intracellular uptake and biophysical characterization, and biotin, which can be used for biophysical characterization and assessment of in vitro target interaction. It is generally desired to include a flexible molecular spacer to isolate the modification from the core of the stapled peptide.

  • N-acetylation
  • Linker attachment (β-alanine, mini-PEG, etc.)
  • Fluorescent labeling (FITC, 5-FAM, etc.)

Protein Targets

Stapled peptides have been studied in the targeting of several proteins relevant in diseases such as cancer, diabetes, HIV, and atherosclerosis. These proteins include:

  • B-cell lymphoma 2 (Bcl-2)
  • B-cell lymphoma-extra large (Bcl-xL)
  • Bcl-2-associated X protein (Bax)
  • Induced myeloid leukemia cell differentiation(Mcl-1)
  • Glucokinase (GK)
  • Murine double minute 2 (Mdm2)
  • Notch/CSL
  • HIV-1 capsid and HIV-1 gp41
  • ATP-binding cassette transporter (ABCA1)
  • Estrogen receptor
